Description

📌LAB POINTS

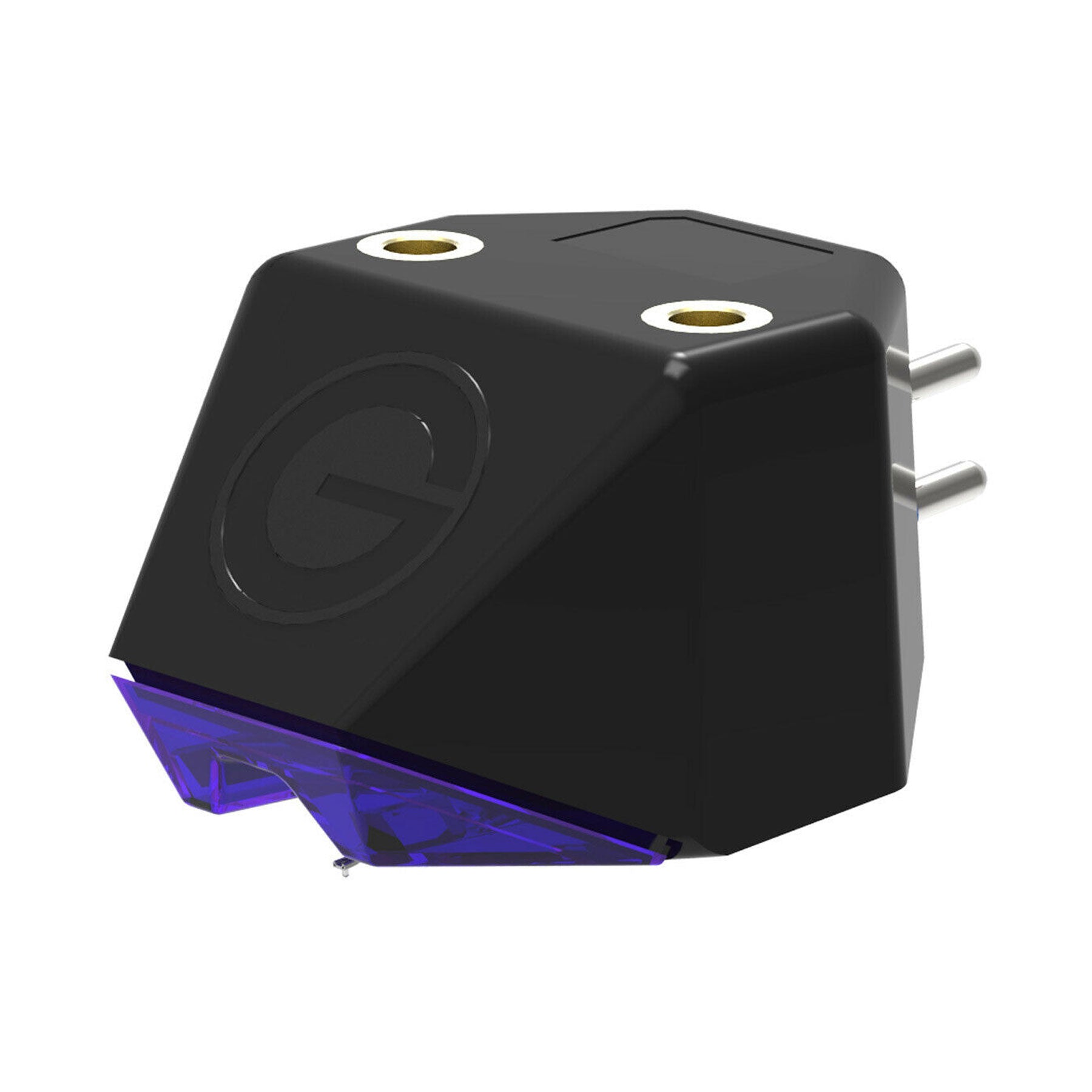

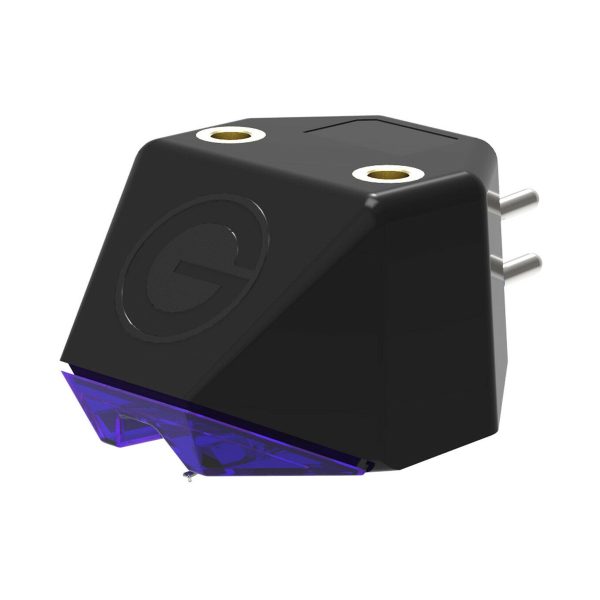

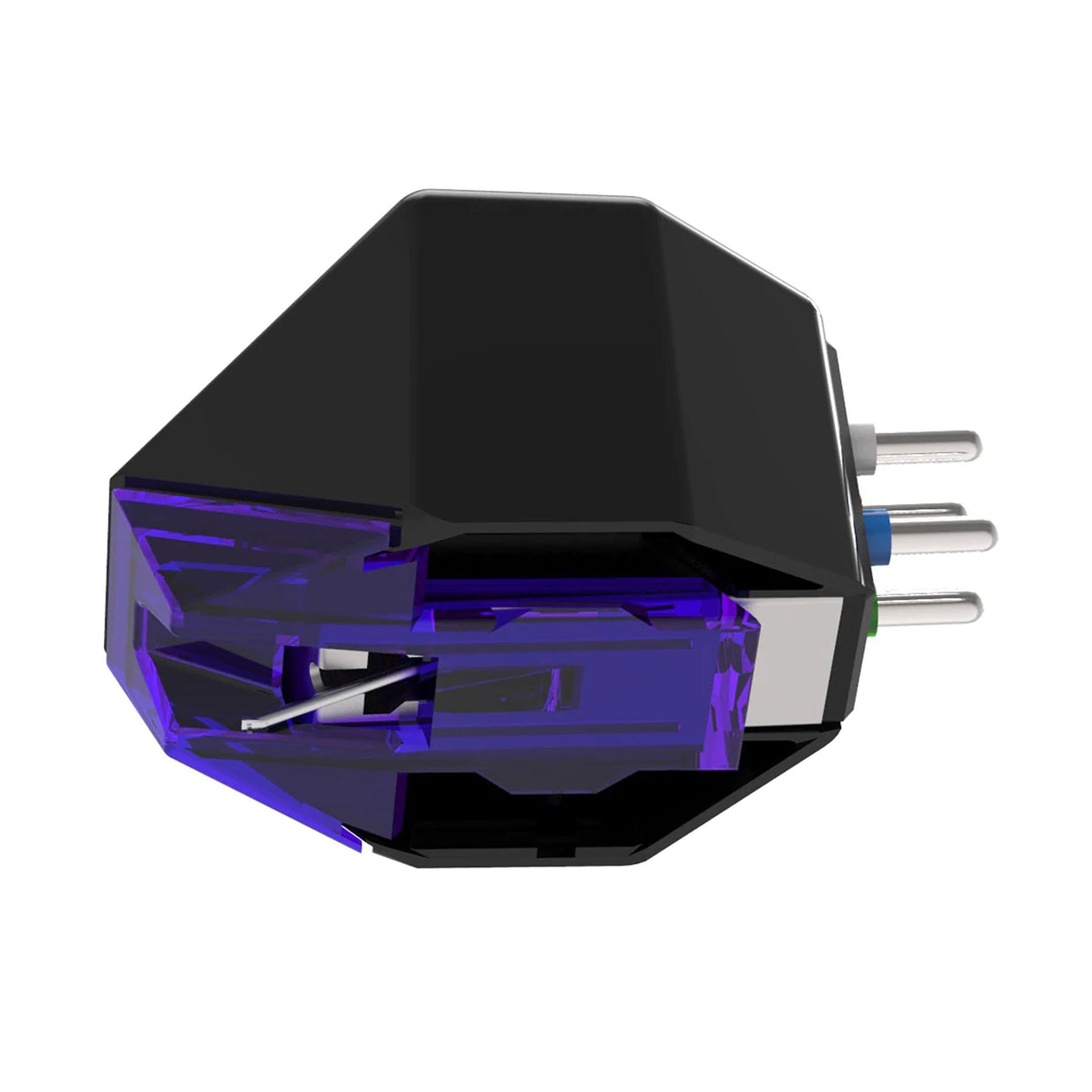

• handmade cartridge from British manufacturer, top of the E-series range
• dual moving magnet cartridge (MM) w super-elliptical stylus + aluminum cantilever
• 2021 What Hi-Fi? award winner
• bonded super-elliptical stylus features smaller front-to-back radius than standard elliptical tip, enabling better high frequency detail retrieval
• micro-adjusted during production to ensure accurate tracking with almost any turntable setup
• dual magnet’ generator assembly tracks w better stereo separation + more detailed musical sound stage
• handmade in the UK

• The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment. – Goldring

  🔎TECH SPECS

  • Colour: Violet
  • Cantilever: Aluminium
  • Stylus profile: Elliptical
  • Stylus radius: 0.3 x 0.7 mil
  • Frequency range: 20 Hz – 20 kHz
  • Channel balance: 1.5 dB at 1 kHz
  • Channel separation: >20 dB at 1 kHz
  • Sensitivity: 3.5 mV (1 kHz @ 5 cm sec)
  • Static compliance: 20 mm N
  • Vertical tracking angle: 20°
  • Load resistance: 47 kΩ
  • Load capacitance: 100 – 200 pF
  • Internal inductance: 400 mH
  • Internal resistance: 410 Ω
  • Cartridge mass: 6.9 g
  • Fixing centres: 12.7 mm (0.5 in)
  • Tracking force: 1.5 g – 2.5 g (2.0 g recommended)
