Description

📌LAB POINTS

• compact CD player, FM tuner + USB media player

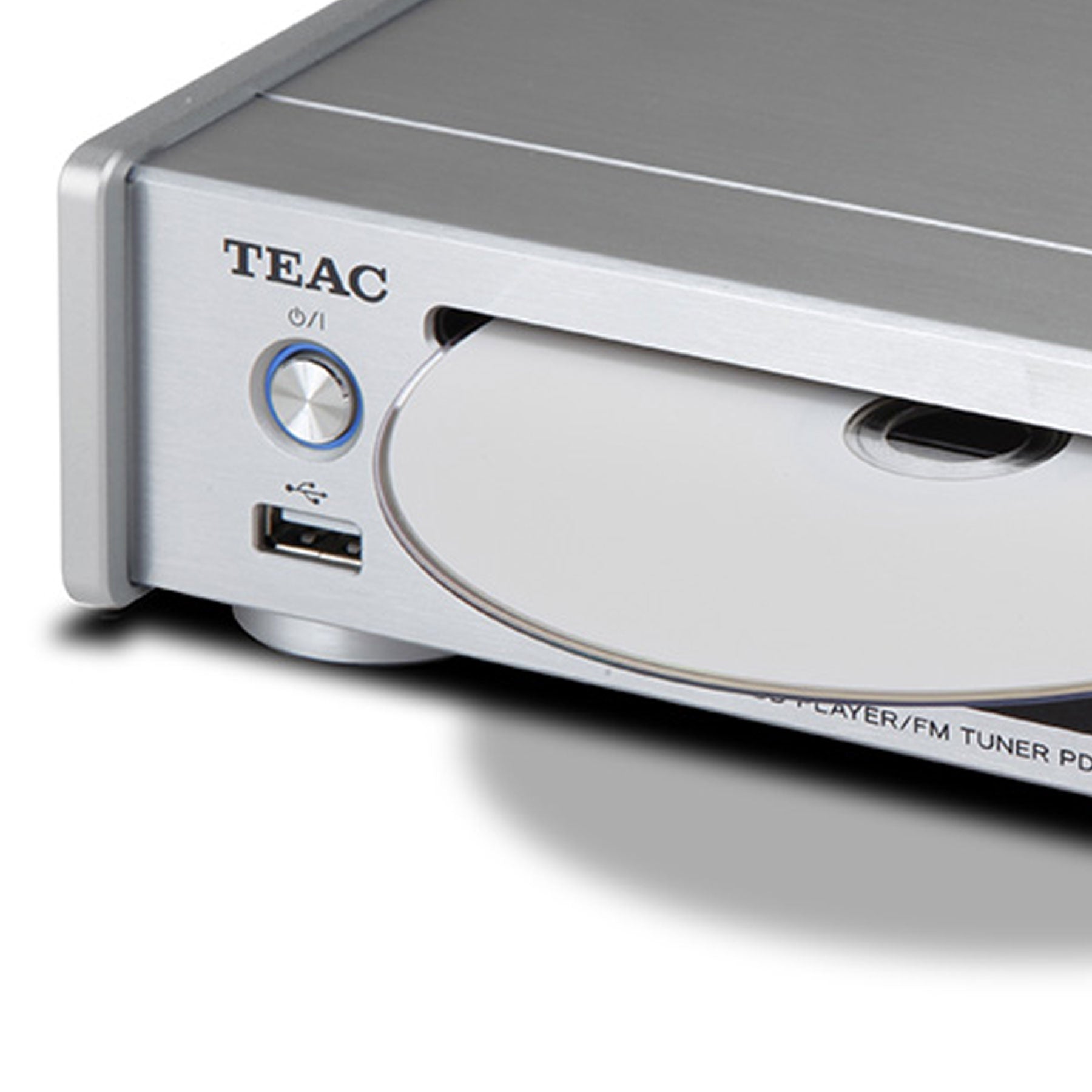

• slot-loading CD drive mechanism supports quick loading and automatic playback
• built-in FM Tuner
• high-performance BurrBrown 32-bit DAC for smooth audio reproduction
• robust full-metal body with a small footprint
• AAC and WAV file playback via USB flash drive, MP3 + WMA file playback via CD-ROM CD-R CD-RW discs, w  ID3 tag, song title + artist name display
• RCA line level output plus coaxial + optical digital audio outputs available for all sources (including FM)
• includes remote control

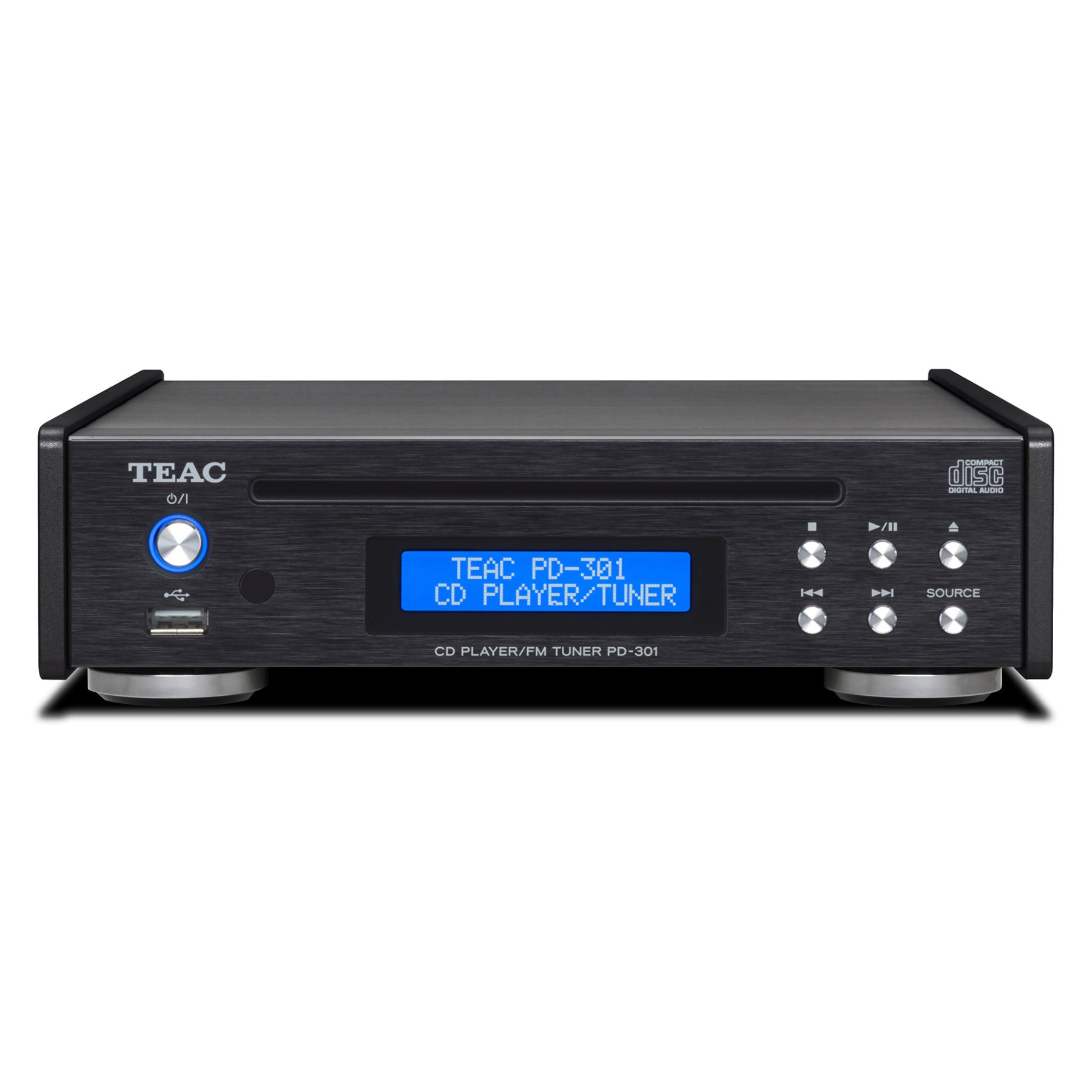

• The PD-301-X is a combination product in the Reference 301 range, comprising a CD player, USB memory player and FM tuner, and provides a versatile digital media gateway for your existing audio system. Thanks to its painstakingly developed circuit design, the PD-301-X delivers superb analogue audio sound to your amplifier, while the coaxial and optical outputs deliver digital audio signals to your favorite DAC (digital to analogue converter), not only from CD and USB memory sticks but also from the FM tuner. – Teac

  🔑KEY FEATURES

  • supported media: CD-DA, CD-ROM, CD-R, CD-RW ( CD-DA format), note: 8cm CDs not supported
  • USB bus power: DC 5V, max 500mA
  • tuner frequency range: FM 76.0 to 108.9MHz
  • FM presets: 20

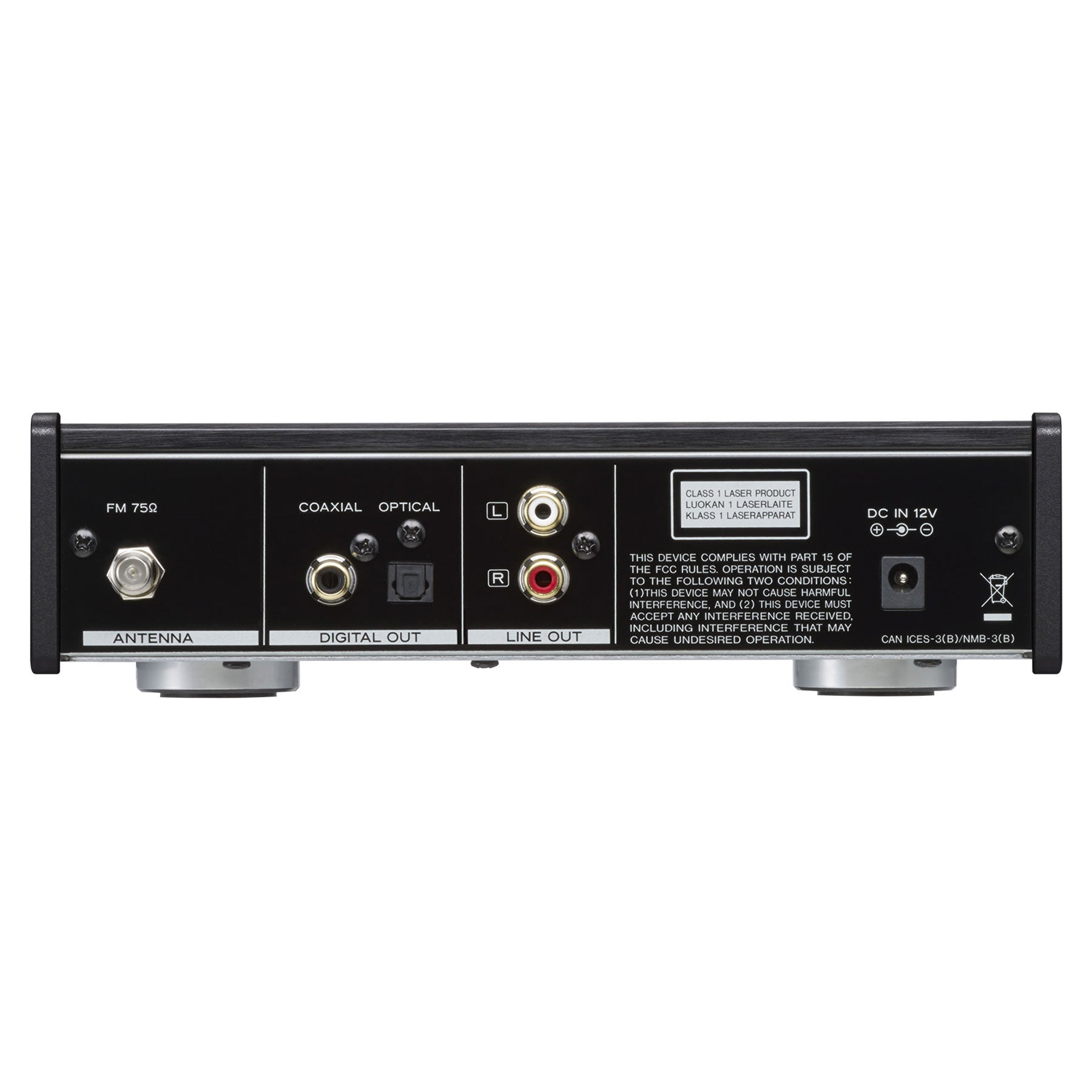

  • outputs: RCA line level stereo pair, coaxial digital audio, optical digital audio
  • power: AC 100 – 230V, 50 60Hz
  • dimensions (W×H×D): 8.5 × 2.4 × 9.4 215 × 61 × 238mm
  • weight: 4.6 lbs. 2.1kg

  • 📦COMES WITH

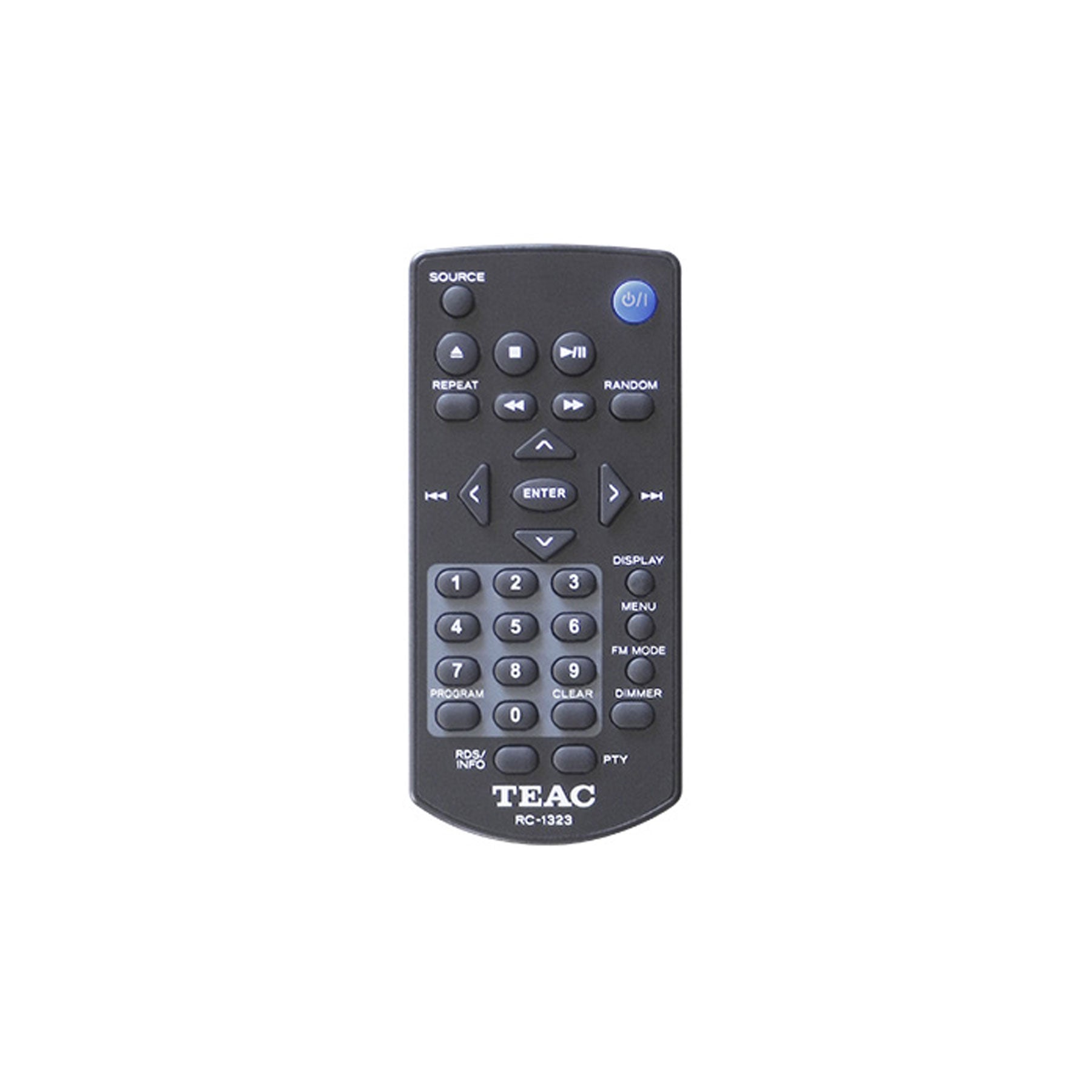

    • remote control (RC-1323)
    • AC adapter (GPE-152-120125W) + power cord
    • 2x AAA batteries
    • RCA audio cable
    • FM cable antenna
    • user manual
